プラノコンベックス(両凸)レンズ/ Plano-Convex Lenses -
|
仕様項目
|
仕様値
|
| 材料 |
BK-7 or UV fused sillica
|
| 焦点距離の許容差 |
+0/-0.25 mm
|
| 設計波長 |
589 nm
|
| 中心性 |
</=3'
|
| 直径公差 |
+0/-0.1mm
|
| クリヤアパーチャ |
> 90%中心面積
|
| 中心厚さ公差 |
±0.1mm
|
| エッジの厚さ |
3mm, normal
|
| 面精度(スクラッチ/ディグ) |
20/10(UVFS) / 40/20(BK7)
|
| 平面度 |
</=1.5λpower,λ/2 irregularity (UVFS)
</=1.5λpower,λ/4 irregularity (BK-7) |
| 面取り |
0-0.8mm 面幅(標準)x45°±15°
|
仕 様
●DUV(深紫外)からIR(赤外)に至る素材
●カスタム寸法、形状
●幅広い種類の光学プリズム
●標準又はカスタムコーティングに応じます
●高レーザ損傷閾値
|
パーツ番号
|
Dia(mm)
|
EFL(mm)
|
R(mm)
|
Tc(mm)
|
Te(mm)
|
材料
|
|
LPX-063-R065-BK7
|
6.35
|
12.7
|
6.565
|
3.819
|
3.0
|
BK7
|
|
LPX-063-R131-BK7
|
6.35
|
25.4
|
13.127
|
3.390
|
3.0
|
BK7
|
|
LPX-063-R164-BK7
|
6.35
|
31.8
|
16.495
|
3.308
|
3.0
|
BK7
|
|
LPX-063-R196-BK7
|
6.35
|
38.1
|
19.690
|
3.258
|
3.0
|
BK7
|
|
LPX127-R131-BK7
|
12.7
|
25.4
|
13.127
|
5.330
|
3.0
|
BK7
|
|
LPX127-R196-BK7
|
12.7
|
38.1
|
19.690
|
4.052
|
3.0
|
BK7
|
|
LPX127-R259-BK7
|
12.7
|
50.2
|
25.973
|
3.789
|
3.0
|
BK7
|
|
LPX127-R390-BK7
|
12.7
|
75.6
|
39.070
|
3.519
|
3.0
|
BK7
|
|
LPX127-R516-BK7
|
12.7
|
100
|
51.680
|
3.392
|
3.0
|
BK7
|
|
LPX127-R775-BK7
|
12.7
|
150
|
77.520
|
3.251
|
3.0
|
BK7
|
|
LPX127-R1292-BK7
|
12.7
|
250
|
129.200
|
3.156
|
3.0
|
BK7
|
|
LPX254-R131-BK7
|
25.4
|
25.4
|
13.127
|
12.807
|
3.0
|
BK7
|
|
LPX254-R259-BK7
|
25.4
|
50.2
|
25.973
|
6.321
|
3.0
|
BK7
|
|
LPX254-R390-BK7
|
25.4
|
75.6
|
39.070
|
5.122
|
3.0
|
BK7
|
|
LPX254-R516-BK7
|
25.4
|
100
|
51.680
|
4.585
|
3.0
|
BK7
|
|
LPX254-R775-BK7
|
25.4
|
150
|
77.520
|
4.047
|
3.0
|
BK7
|
|
LPX254-R1033-BK7
|
25.4
|
200
|
103.36
|
3.783
|
3.0
|
BK7
|
|
LPX254-R1292-BK7
|
25.4
|
250
|
129.20
|
3.626
|
3.0
|
BK7
|
|
LPX254-R1550-BK7
|
25.4
|
300
|
155.04
|
3.521
|
3.0
|
BK7
|
|
LPX254-R2067-BK7
|
25.4
|
400
|
206.72
|
3.390
|
3.0
|
BK7
|
|
LPX254-R2584-BK7
|
25.4
|
500
|
258.4
|
3.312
|
3.0
|
BK7
|
|
LPX254-R3876-BK7
|
25.4
|
750
|
387.6
|
3.208
|
3.0
|
BK7
|
|
LPX254-R5168-BK7
|
25.4
|
1000
|
516.8
|
3.156
|
3.0
|
BK7
|
|
LPX508-R516-BK7
|
50.8
|
100
|
51.68
|
9.673
|
3.0
|
BK7
|
|
LPX508-R775-BK7
|
50.8
|
150
|
77.52
|
7.279
|
3.0
|
BK7
|
|
LPX508-R1033-BK7
|
50.8
|
200
|
103.36
|
6.17
|
3.0
|
BK7
|
|
LPX508-R1292-BK7
|
50.8
|
250
|
129.2
|
5.521
|
3.0
|
BK7
|
|
LPX508-R1550-BK7
|
50.8
|
300
|
155.04
|
5.059
|
3.0
|
BK7
|
|
LPX508-R2067-BK7
|
50.8
|
400
|
206.72
|
4.566
|
3.0
|
BK7
|
|
LPX508-R2584-BK7
|
50.8
|
500
|
258.4
|
4.251
|
3.0
|
BK7
|
|
LPX508-R3876-BK7
|
50.8
|
750
|
387.6
|
3.833
|
3.0
|
BK7
|
|
LPX508-R5168-BK7
|
50.8
|
1000
|
516.8
|
3.625
|
3.0
|
BK7
|
ご注文情報
|
LPX
|
063
|
R065
|
BK7
|
|
製品コード
|
直径=6.3mm
|
半径=6.563mm
|
素材
|
特長
|
パーツ番号
|
Dia(mm)
|
EFL(mm)
|
R(mm)
|
Tc(mm)
|
Te(mm)
|
材料
|
|
LPX-063-R058-UVFS
|
6.35
|
12.7
|
5.829
|
3.941
|
3.0
|
UVFS
|
|
LPX-127-R116-UVFS
|
12.7
|
25.4
|
11.659
|
4.881
|
3.0
|
UFVS
|
|
LPX-127-R174-UVFS
|
12.7
|
38.1
|
17.465
|
4.200
|
3.0
|
UVFS
|
|
LPX-127-R230-UVFS
|
12.7
|
50.2
|
23.012
|
3.89
|
3.0
|
UVFS
|
|
LPX-127-R346-UVFS
|
12.7
|
75.6
|
34.656
|
3.59
|
3.0
|
UVFS
|
|
LPX-254-R174-UVFS
|
25.4
|
38.1
|
17.465
|
8.48
|
3.0
|
UFVS
|
|
LPX-254-R230-UVFS
|
25.4
|
50.2
|
23.042
|
6.816
|
3.0
|
UVFS
|
|
LPX-254-R374-UVFS
|
25.4
|
75.6
|
34.7
|
5.480
|
3.0
|
UVFS
|
|
LPX-254-R459-UVFS
|
25.4
|
100
|
45.9
|
4.792
|
3.0
|
UVFS
|
|
LPX-254-R688-UVFS
|
25.4
|
150
|
68.85
|
4.181
|
3.0
|
UFVS
|
|
LPX-254-R918-UVFS
|
25.4
|
200
|
91.8
|
3.883
|
3.0
|
UVFS
|
|
LPX-254-R1146-UVFS
|
25.4
|
250
|
14.603
|
3.71
|
3.0
|
UVFS
|
|
LPX-254-R1604-UVFS
|
25.4
|
350
|
160.445
|
3.5
|
3.0
|
UVFS
|
|
LPX-254-R295-UVFS
|
25.4
|
500
|
229.5
|
3.352
|
3.0
|
UFVS
|
|
LPX-254-R3438-UVFS
|
25.4
|
750
|
343.81
|
3.23
|
3.0
|
UVFS
|
|
LPX-254-R4590-UVFS
|
25.4
|
1000
|
459.00
|
3.176
|
3.0
|
UVFS
|
|
LPX-508-R459-UVFS
|
50.8
|
100
|
45.9
|
10.668
|
3.0
|
UVFS
|
|
LPX-508-R918-UVFS
|
50.8
|
200
|
91.8
|
6.584
|
3.0
|
UFVS
|
|
LPX-508-R1377-UVFS
|
50.8
|
300
|
137.7
|
5.363
|
3.0
|
UVFS
|
|
LPX-508-R2295-UVFS
|
50.8
|
500
|
229.5
|
4.41
|
3.0
|
UVFS
|

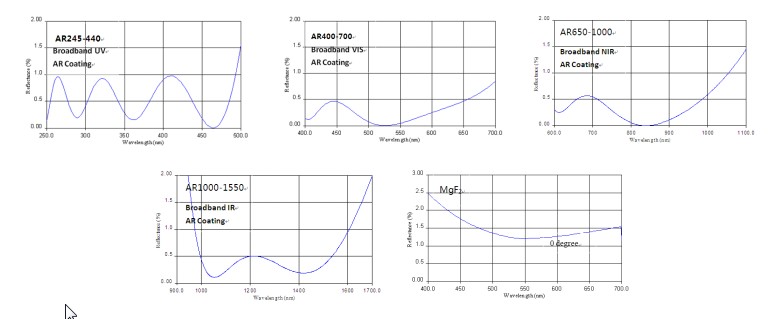

無反射コーティング
精密球状レンズは、光学ガラス、フッ化カルシウム（CaF2）、フッ化マグネシウム（MgF2）、溶融シリカ、サファイア、
ゲルマニウム（Ge）、シリコン（Si）、セレン化亜鉛（ZnSe）などのさまざまな光学基板から作られています。
紫外線（UV）、可視、または赤外線（IR）の波長範囲をカバーする複数のコーティング設計とともに、さまざまな
アプリケーションでの使用に理想的なオプションを提供させて頂きます。
